Fujifilm FDR Cross

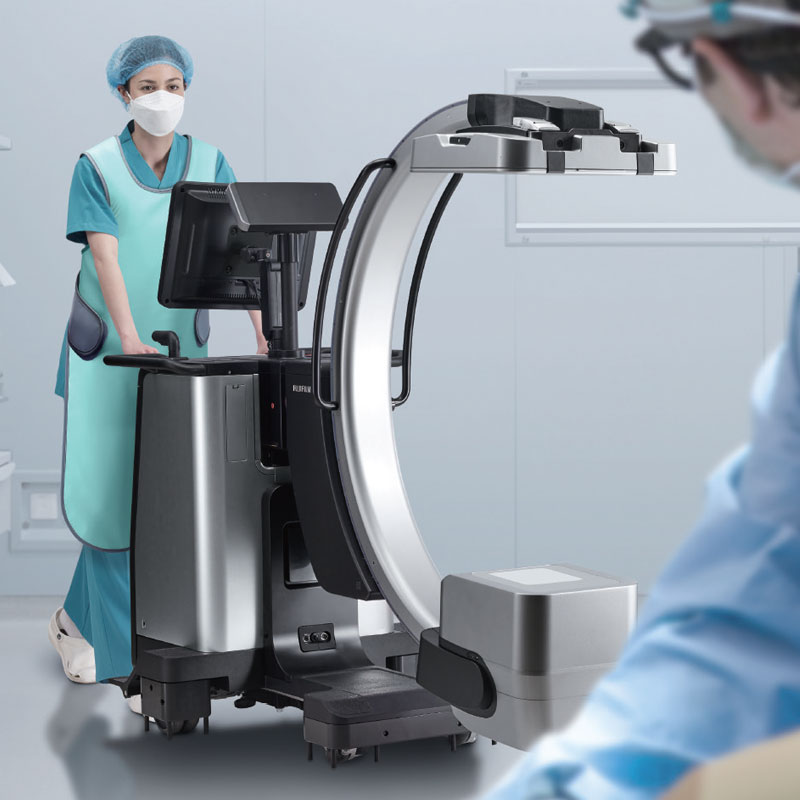

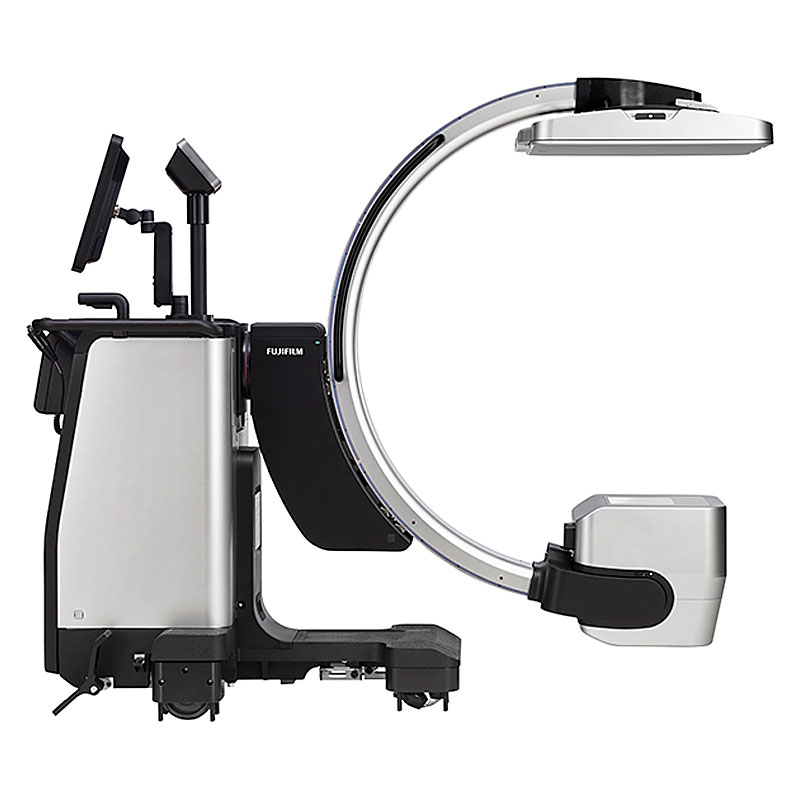

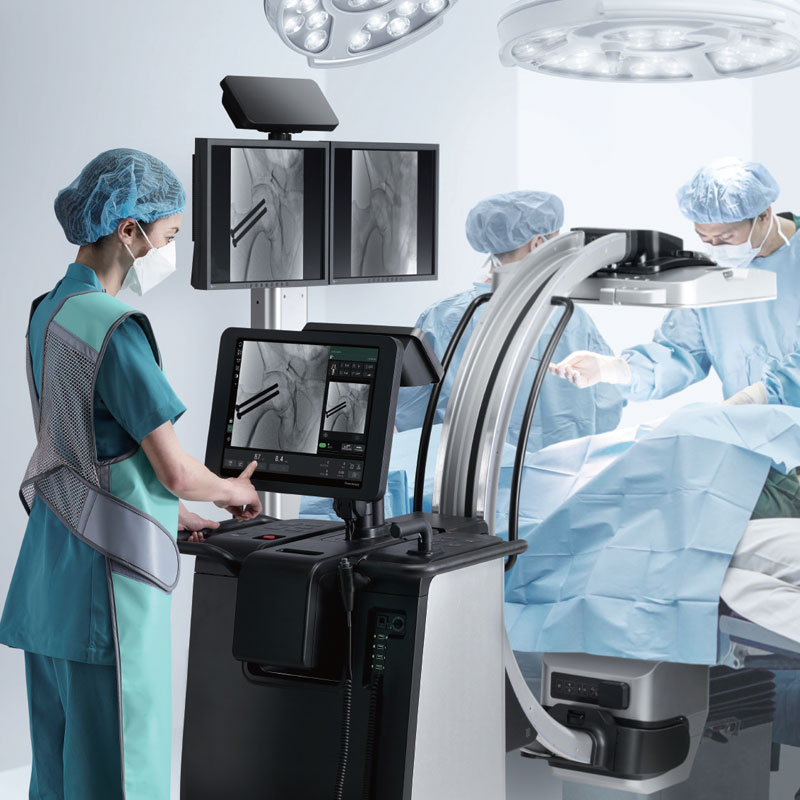

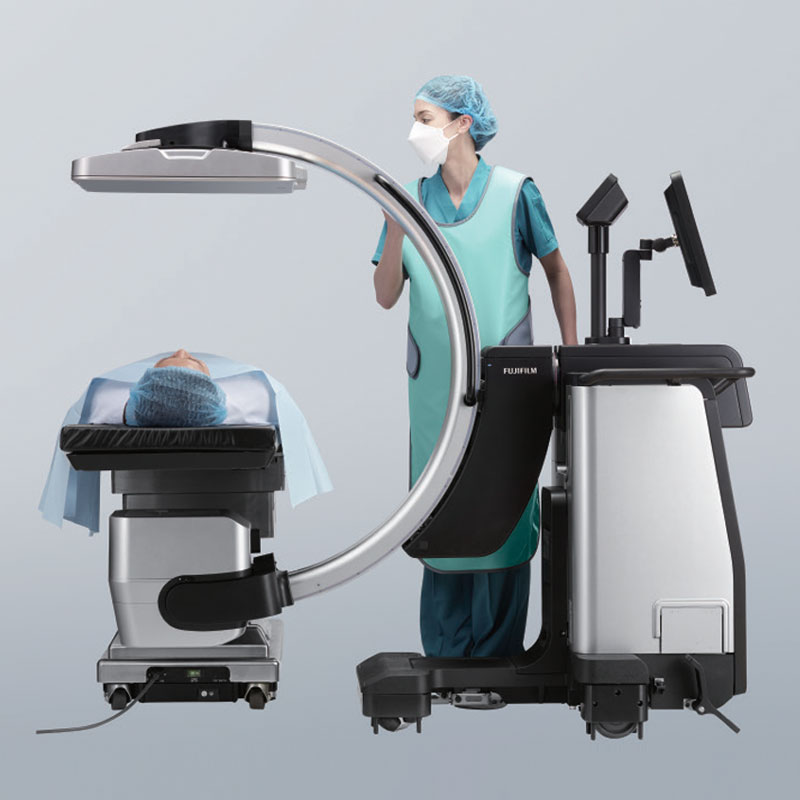

Cross is the two-in-one the OR has been asking for. In fluoro mode it behaves like a compact C-arm. In radiography mode the tube pivots off the detector housing and the D-EVO III panel comes out for static images before, during, and after the case — comparable to a conventional portable.

At about 549 lb it is more than 150 lb lighter than typical compact C-arms. Omni-directional front wheels, wrap-around handles, dual brake pedals, lithium battery up to 8 hours (4 hours empty-to-full), and AC pass-through. Optional wireless foot switch and dual-19-inch monitor cart.

Interchangeable detector enclosures: 10×12 for limbs and tight fluoro, 14×17 for spine and hip, 17×17 for post-op stills. We match the enclosure to the specialty. Hydro Ag on primary surfaces. Built-in HV cables, no festoon mess.

What matters in the room

• Fluoro + radiography, one platform, battery powered
• Removable D-EVO III glass-free detector
• Interchangeable 10×12, 14×17, 17×17 enclosures
• ~549 lb — over 150 lb lighter than typical compact C-arms
• Up to 8-hour lithium battery, 4-hour charge
• Optional wireless foot switch and dual 19-inch cart

How this system is used

• Orthopedic
• Hospital
• Urgent Care
