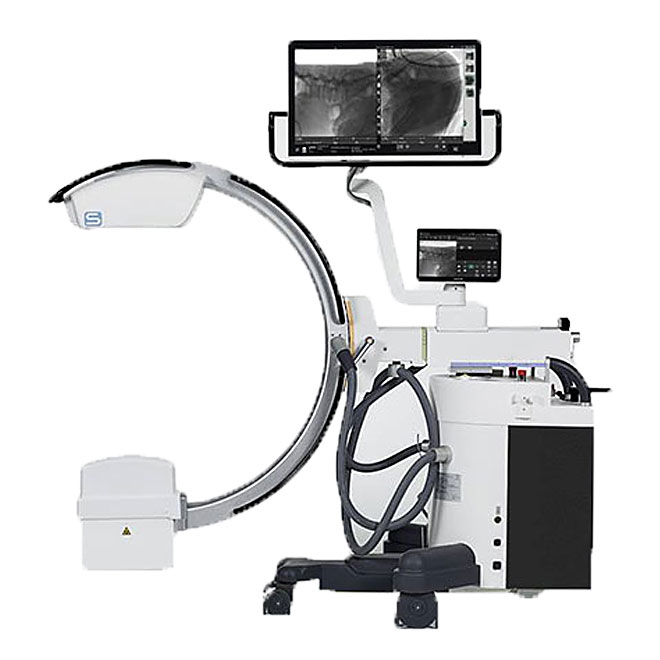

Fujifilm Persona CS
Onboard 27-inch monitor. 5 kW. Up to 30 frames per second.
Compact 2-in-1 mobile C-arm: 5 kW generator — more than twice a typical compact — 21 or 30 cm CsI panel, onboard 27-inch touchscreen, orbital +65° to −95°, angular ±210°, 450 mm vertical. Optional Wi-Fi video out and thermal printer.
Quotes stay private. Call 720-600-3117 for a number that matches the room.

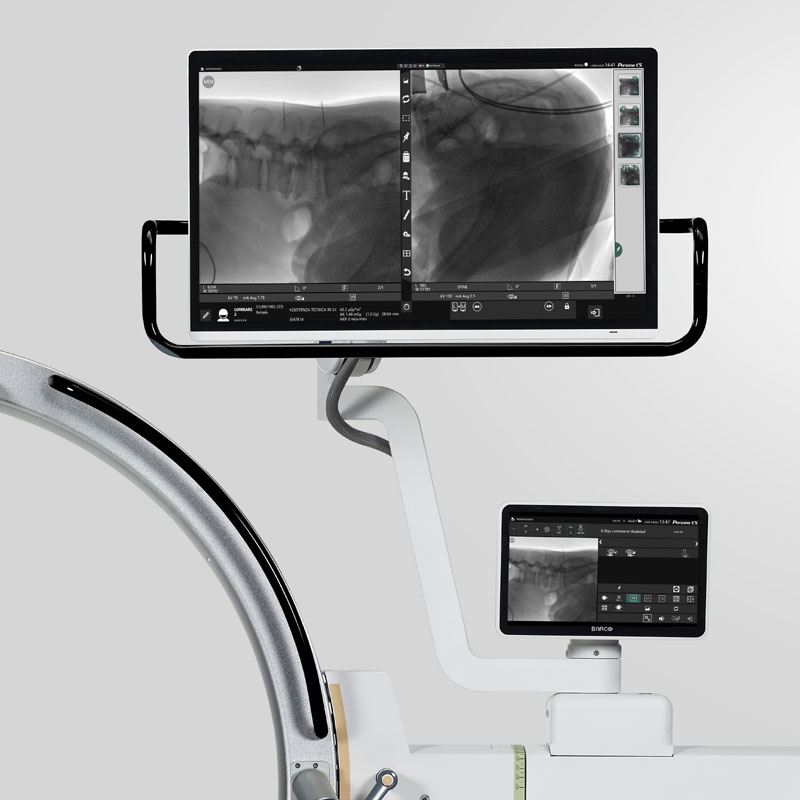

Persona CS puts the viewing station on the arm. A 27-inch touchscreen on a three-way articulated support means no second cart in a cramped OR, while still keeping driver sightlines. The 5 kW generator is the point of the CS badge — penetration and frame rate a 2 kW compact will not match, up to 30 fps fluoro.

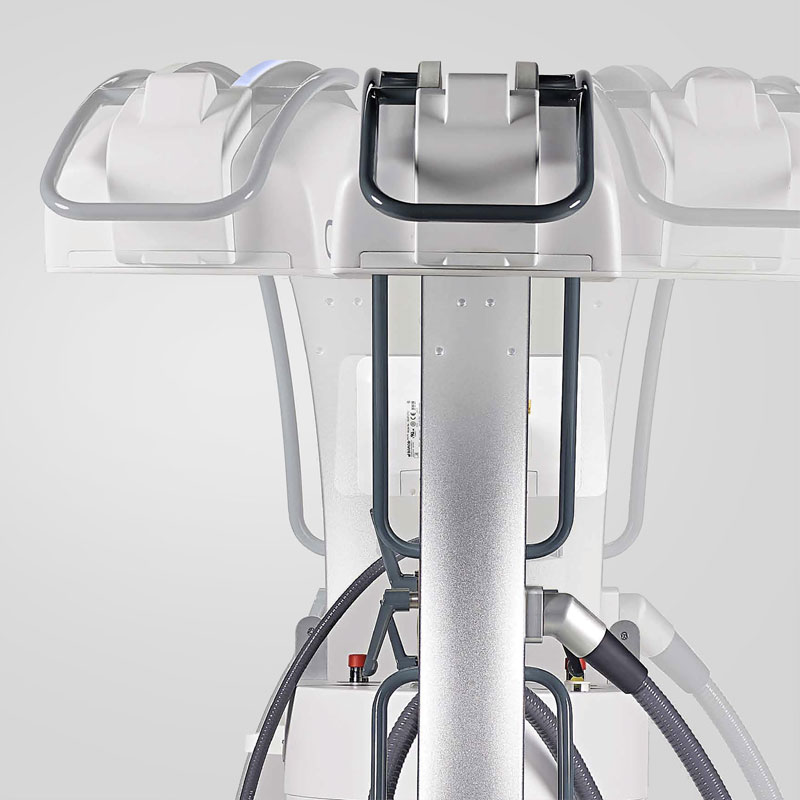

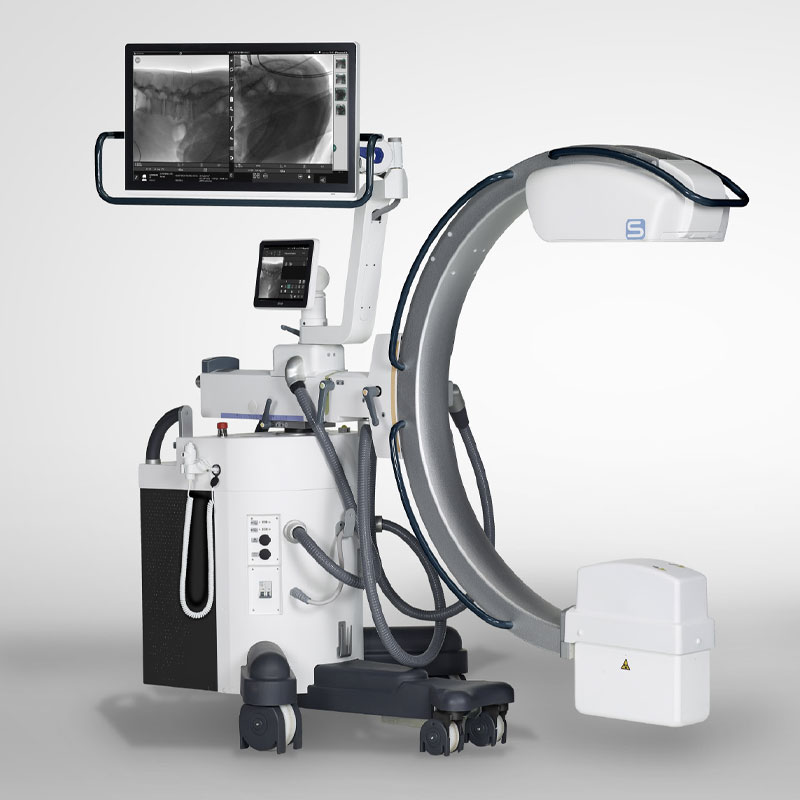

Orbital rotation +65° to −95° for obliques without walking the stand around the table. Angular travel more than ±210°. Vertical travel 450 mm. Color-coded locks, effortless glide, removable grid, dedicated radiography mode.
Optional onboard thermal printer and Wi-Fi video to a ceiling or wall display. We quote CS when the room wants compact footprint and real generator headroom. Persona C remains the two-piece large-monitor option.
What matters in the room
- 5 kW onboard generator — over 2× typical compact C-arms
- Onboard 27-inch touchscreen, three-way articulated arm
- 21 or 30 cm CsI flat panel, up to 30 fps
- Orbital +65°/−95°, angular ±210°, 450 mm lift
- Removable grid and dedicated radiography mode
- Optional Wi-Fi video out and thermal printer
